Hardware

MCU

RTL8763EWE

G-SENSOR

STK8321

Heart rate sensor

LC09A

Touch chip

Hynitron 816D

Touch screen

Full screen touch

screen size

1.39‘’

screen material

TFT

Display resolution

360*360

touch screen technology

G+F

Flash

128M

Bluetooth version

BLE5.2

bluetooth antenna

FPC type

suona

AAC original factory（5magnetic）

microphone

6027 High sensitivity microphone

PCB

6-layer board

Battery /charging method

battery size

65mm*20mm*20mm

battery capacity

260mAh

battery material

Pure cobalt battery

charging time

2h

Use time

5-7 days

Standby time

25-30 d

charge management

Typical charging current value 120 or 160mA

Battery Cycles

450 cycles

Structure

Physical buttons

2 buttons, aluminum alloy anodizing process

waterproof level

IP67

Shell material

Zinc alloy, ABS+PC

Shell material process

Zinc alloy vacuum plating/ABS+PC material

strap material

silica gel

Buckle material

303Stainless steel

How to assemble the strap

switch

watch size (L x W x H) mm

44.7*37.7*10.5mm

Strap size (length)

22mm*122.5mm

Strap Size (Short)

22mm*76mm

Heart rate lenses

PC sheets

Function

Heart rate monitoring

Resting Heart Rate

blood pressure monitoring

support

Blood oxygen monitoring

support

body temperature monitoring

NO

breathing training

support

respiration rate

support

female menstrual cycle

menstrual period, ovulation period, safe period

state

Step count, calories, distance

sport mode

Built in 8+1 sports modes, including walking, running, hiking, cycling, skipping rope, basketball, badminton, football, yoga (as push)

Audio Bluetooth

One-click link

audio switch

Turn on connected audio, turn off disconnected audio

dial pad

support

call records

support

contact

support

incoming call

support

answer the call

Connect audio for up to 5 hours of music playback and maximum volume for up to 5 hours

call rejection

Store up to 8 messages

play music

support

message push

support

Sedentary reminder

support

alarm clock reminder

support

Turn your wrist to brighten the screen

support

backhand screen off

support

Do Not Disturb Mode

support

Shake to take a photo

support

find phone

support

bright adjustment

Comes with 5 dials and 1 custom dial

music control

support

APP massive dial

support

Step count

support

countdown

support

stopwatch

support

goal achievement reminder

support

sleep monitoring

support

Language

APP Supported languages

Russian, Indonesian, German, Italian, Czech, Japanese, French, Polish, Simplified Chinese, Traditional Chinese, English, Portuguese, Spanish, Arabic, Korean

APP support software push

WeChat 、QQ、lnstagram、YouTube、Messenger、Gmail、Snapchat、Facebook、Twitter、WhatsAPP、Pinterest、Hangouts、Linkedin、SKype、Tumbir、Viber、Line、Google+、Flickr、VK、KaKa Talk、

Supported languages on the wristband

Russian, Indonesian, German, Italian, Czech, Japanese, French, Polish, Simplified Chinese, Traditional Chinese, English, Portuguese, Spanish, Arabic, Korean, Dutch, Hindi

Message push support language

English, Russian, Indonesian, German, Italian, Czech, Japanese, French, Polish, Simplified Chinese, Traditional Chinese, Portuguese, Spanish, Arabic, Korean, Dutch, Hindi, Armenian, Syrian Bengali, Sikh, Gujarati, Oriya, Telugu, Lao, Burmese, Georgian, Korean, Ethiopian, Cherokee, Mongolian, Javanese, Cambodian

APP/OS

APP

Fit Cloud Pro

Android

Above 4.4

IOS

Above 9.0

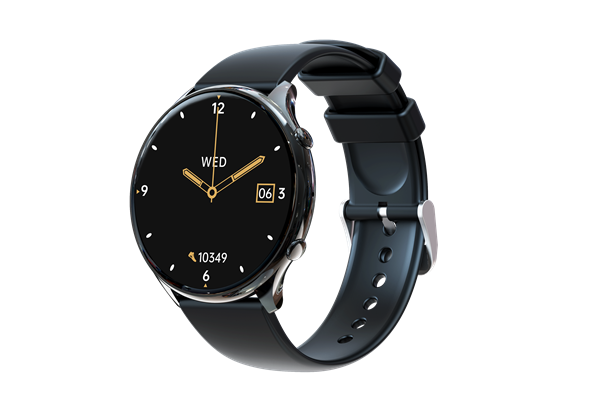

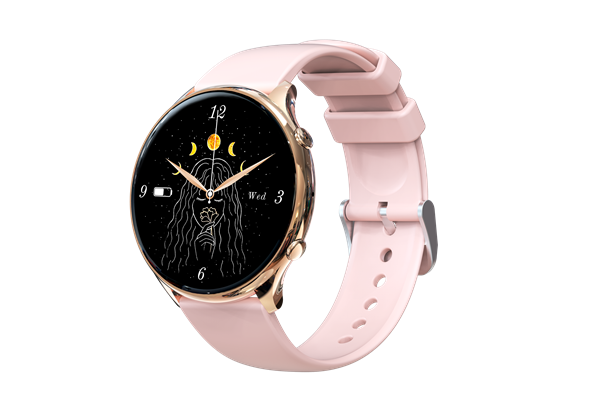

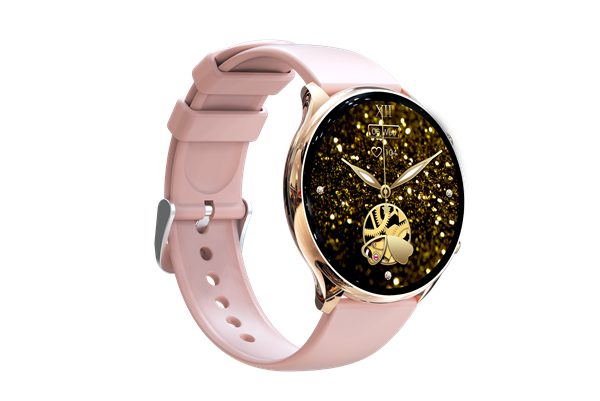

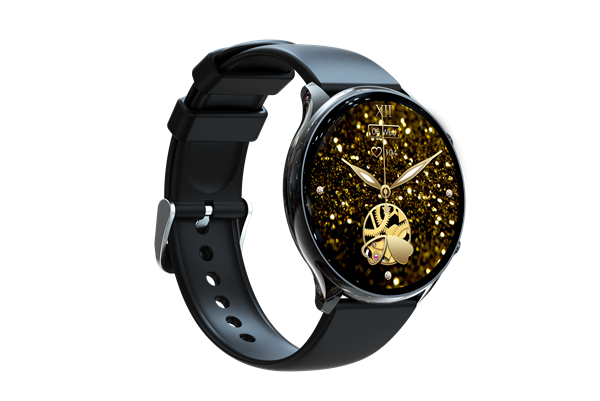

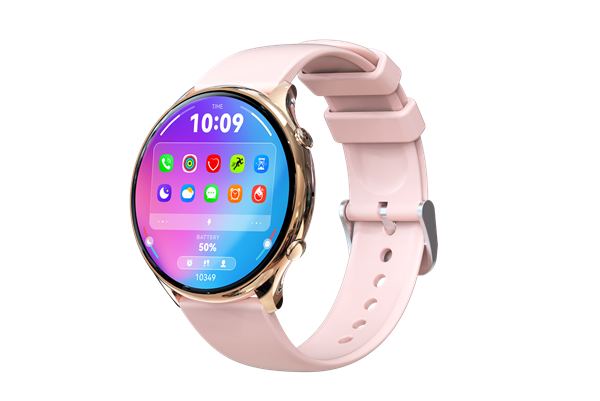

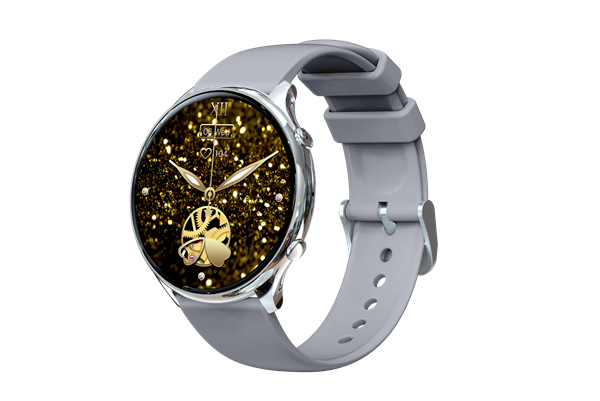

Watch color

schwarz

Schwarz+Schwarz

golden

golden+golden

Outer packaging

Packaging size

28*8*2cm

Machine weight (including strap)

127.1g

carton size

575*475*200mm

FCL quantity

100pcs

FCL weight

13.5kg

working environment

Operating temperature

-20℃ to 60℃

charging temperature

0℃ to 40℃

Working humidity

10%-90%RH (non-condensation)

Storage temperature

-30℃ to 80℃

Relative humidity

5%-90%RH (non-condensation)
